GNSS GPS RTK Geodetik HI-Target V200
Features GNSS GPS RTK Geodetik HI-Target V200 :
- Presisi kinematik waktu nyata: 8 mm H/ 15 mm V
- Channels: 800+
- Mendukung radio multi-protokol
- Kinerja Survei Kemiringan: 8 mm +0,7 mm / ° kemiringan
- GNSS Signal : GLONASS L1 / L2 / L3 ; Galileo E1 / E5 AltBOC / E5a / E5b / E6 ; SBAS L1 / L5 ; QZSS L1 / L2 / L5 / L6 ; IRNSS L5
- Communication : Bluetooth, WiFi
- Battery : 6800mAh Li-ion Rechargeable Battery / 7.4V
- Data Storage: 8GB ROM
- Water / Dust proof IP67

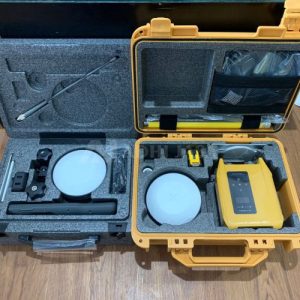

PAKET PEMBELIAN GNSS GPS RTK Geodetik HI-Target V200 :
- Base
- Rover

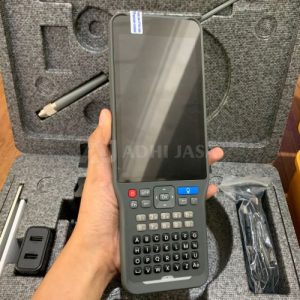

- Controller
- Tribrach
- Tripod
- Pole Stik
- Free Radio Eksternal (Stok Terbatas)
Spesifikasi Produk :
| GNSS Feature | Specification | |||||
| GNSS Signal | Channels | 800+ |
|
|||
| GPS | L1 / L2 / L5 / L2C | |||||
| BDS | B1 / B2 / B3 / B1C / B2a | |||||
| GLONASS | L1 / L2 / L3 | |||||
| Galileo | E1 / E5 AltBOC / E5a / E5b / E6 | |||||
| SBAS | L1 / L5 | |||||
| QZSS | L1 / L2 / L5 / L6 | |||||
| IRNSS | L5 | |||||
| Positioning Performance |
High-precision static GNSS Surveying | Horizontal:2.5mm + 0.1ppm RMS | Vertical:3.5mm + 0.4ppm RMS | ||||
| Static and Fast Static | Horizontal:2.5mm + 0.5ppm RMS | Vertical:5mm + 0.5ppm RMS | |||||
| Post Processing Kinematic (PPK / Stop & Go) |
Horizontal:8mm + 1ppm RMS | Vertical:15mm + 1ppm RMS | |||||
| Initialization time:Typically 10 min for base and 5 min for rover | ||||||
| Initialization reliability:Typically>99.9% | ||||||
| Code Differential GNSS Positioning | Horizontal:±0.25m+1ppm RMS | |||||
| Vertical:±0.5m+1ppm RMS | SBAS:0.5m (H), 0.85m (V) | ||||||
| Real Time Kinematic (RTK) | Horizontal:8mm+1ppm RMS | Vertical:15mm+1ppm RMS | |||||
| Initialization time:Typically <10s | Initialization reliability:Typically > 99.9% | ||||||
| Time to first Fix | Cold start:< 45 s Hot start:< 30 s | Signal re-acquisition:< 2 s | |||||
| Hi-Fix | Horizontal:RTK+10mm / minute RMS | Vertical:RTK+20mm / minute RMS | |||||
| Tilt Survey Performance | 8 mm +0.7 mm / °tilt (2.5cm accuracy in the inclination of 60°) | |||||
| Communication | Communication | Bluetooth:4.2 / 2.1+EDR, 2.4GHz | ||||
| Wi-Fi:frequency 2.4GHz, Supports 802.11 b / g / n | ||||||
| Internal UHF Radio | Frequency:410-470MHz | Channel:116 (16 scalable) | |||||
| Transmitting power:0.5W / 1W / 2W adjustable | ||||||
| Supports multi-communication protocols:HI-TARGET, TRIMTALK 450S, TRIMMARK III, TRANSEOT, SATEL-3AS, etc. |
||||||
| Physical | Internal battery | Internal 7.4V / 6800mAh lithium-ion rechargeable battery. | ||||
| RTK Rover (Network) for 12 hours. | Static:up to 15 hours | ||||||
| External power | Power consumption:4.2W | Dimensions (W×H):132mm×67mm | |||||
| Charging:using standard smartphone chargers or external power banks. | ||||||
| Weight:≤0.8kg (includes battery) | Data storage:8GB ROM internal storage | ||||||
| Control Panel | LED Lamp | Satellite, Signal, Power | ||||
| Physical button | 1 | |||||
| Environment | Water / Dust proof | IP67 | ||||
| Shock and vibration | Designed to survive a 2m natural fall onto concrete | |||||
| Humidity | 100%, condensing | |||||
| Operation temperature | -30℃~+70℃ | |||||
| Storage temperature | -40℃~+80℃ | |||||
| I / O Interface | USB port, Type C | |||||
| SMA antenna connector | ||||||
| Data Formats | Output rate | 1Hz-20Hz. | ||||
| Static data format | GNS, Rinex | |||||
| Network model | VRS, FKP, MAC; supports NTRIP protocol | |||||
| CMR & RTCM | CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2 | |||||
| Navigation outputs ASCII | NMEA-0183 |
— Garansi 100%
— Original Product
— High Quality
