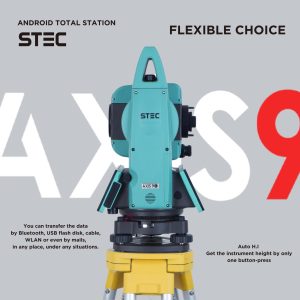

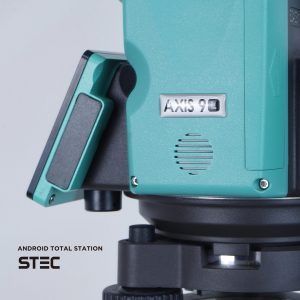

Total Station STEC Axis 9 Series TS Android High Precision

STEC

📦 Kelengkapan Total Station Android Laser STEC Axis 9

  1. 1x Unit Total Station Android Laser STEC Axis 9

  2. 🔋 2x Battery Li-50 (5000mAh)

  3. 🔌 1x Charger NC-III

  4. 🔗 1x Kabel Data

  5. 🧰 1x Tool Kit (Peralatan Servis)

  6. 📐 1x Prism Sheet (Lembaran Prisma)

  7. 🛡 1x Protection Case for Total Station (Pelindung Alat)

  8. 📏 2x Tripod Statif Aluminium

  9. 📍 1x Stik Pole / Jalon Survey

  10. 🔶 1x Prisma Polygon / Prisma ADS

  11. 🔷 1x Prisma Single Target / Prisma AK

Rp70.000.000 Rp75.000.000

Gunakan fitur ini untuk chatting dengan admin kami.

Wova S. Nirwana Bantuan Online Need Help? Chat us via Whatsapp WA : 6281323673998 Chat
Rendy Adiwijaya Sales Agen Online Need Help? Chat us via Whatsapp WA : 6282128000498 Chat

📡 Total Station Laser Android STEC Axis 9 Series

Original Product | Garansi Resmi | Free Demo Bandung – Jakarta
📱 WA: 0813-2367-3998 (Wova)

🧠 Spesifikasi Umum

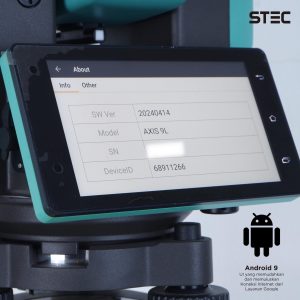

  • Sistem Operasi: Android 9.0

  • Prosesor: MT6735

  • Memori Internal: RAM 3GB, ROM 32GB

  • Display: Layar sentuh warna 5” (2 sisi), tombol volume & power

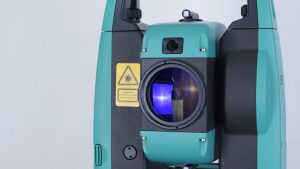

🔭 TELESKOP

  • Panjang: 154mm

  • Diameter: 45mm (Teleskopik), 50mm (EMD)

  • Pembesaran: 30x

  • Gambar: Tegak (Erect Image)

  • Field of View: 1°30’

  • Minimum Fokus: 1.5m

  • Resolusi: 3”

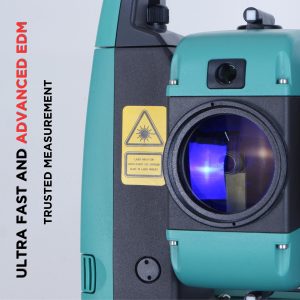

📏 PENGUKURAN JARAK

  • Jangkauan Prism Tunggal: 5.000m

  • Akurasi:

    • AXIS 9/9L: ±(2mm + 2mm × D) m.s.e

    • AXIS 9P/9i: ±(1mm + 1mm × D) m.s.e

  • Jangkauan Non-Prisma:

    • AXIS 9: 1.500m

    • AXIS 9L: 2.000m

    • AXIS 9P/9i: 1.000m

  • Akurasi Non-Prisma: ±(3mm + 2mm × D) m.s.e

  • Waktu Ukur: Fine 0.3s | Normal 0.2s

  • Koreksi Meteorologi: Sensor Otomatis

  • Konstanta Prisma: Manual

🎯 PENGUKURAN SUDUT

  • Akurasi:

    • AXIS 9/9L: 2”

    • AXIS 9P: 1”

  • Metode: Absolute Encoding

  • Deteksi:

    • AXIS 9/9L: Dual

    • AXIS 9P: Quadruple

  • Pembacaan Minimum: 0.1” / 1”

  • Unit Sudut: 360° / 400gon / 6400mil

  • Sudut Vertikal 0°: Zenith 0°, Horizontal 0°

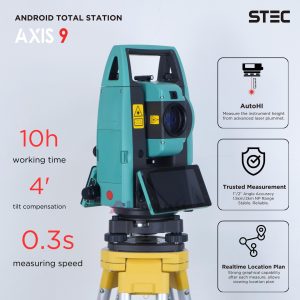

🔴 LASER PLUMMET – AutoHI (AXIS 9L/9P/9i)

  • Jenis: Laser Merah Class II

  • Jarak Ukur: 0.6 – 2.0m

  • Akurasi Jarak: ±3mm

  • Diameter Titik: 1.5mm @ 1.5m

  • Penyimpangan: ±0.6mm @ 1.5m

📐 TILT & LEVEL

  • Sensor Miring: Dual Axis (Liquid Electric)

  • Rentang: ±4’ | Resolusi: 1”

  • Libella Plate: 30”/2mm

  • Libella Bulat: 8’/2mm

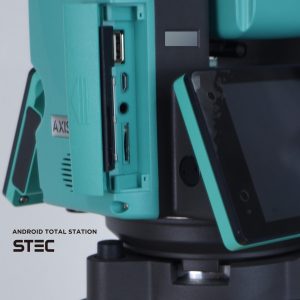

💾 KONEKTIVITAS & INTERFACE

  • Antarmuka Data: USB 2.0, MicroUSB, RS-232

  • Wireless: Bluetooth 2.0 / 4.2, Wi-Fi, SIM Card

  • Quick-Measure Button: ✅ Tersedia

⚙️ UMUM

  • Dimensi: 353 (H) × 206 (L) × 200 (W) mm

  • Berat: 6kg

  • Baterai: Li-ion 7.4V, 5.000mAh

  • Durasi Kerja: 10 Jam

  • Ketahanan: IP55 (Tahan Air & Debu)

  • Suhu Operasi: -20°C hingga 50°C

✅ Garansi 100%
✅ Produk Original
✅ Kualitas Tinggi

CV. ADHI JASA
Menjual: Total Station, Theodolite Digital, Waterpass, GPS, dan berbagai aksesoris survey lainnya.
