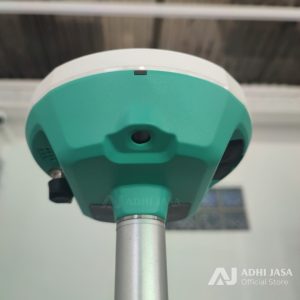

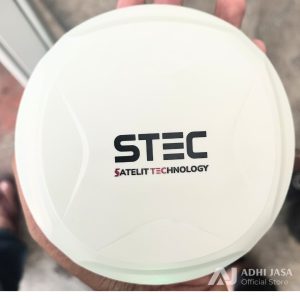

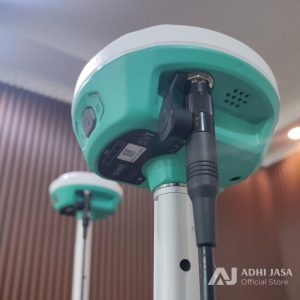

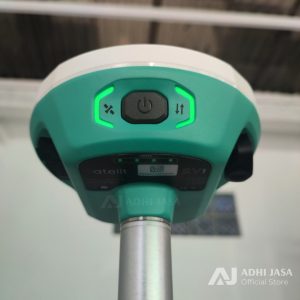

GPS GNSS Geodetik RTK Satelit SV1 STEC Satelit Technology
Spesifikasi SV1 :
– 1,408 channels
-Support GPS, GLONASS, BDS, BEIDOU, GALILEO, SBAS, QZSS, L-band
-Frekuensi 410-470 Mhz
-2 Sensors mega CMOS imaging sensors
-Data Tranfer Type-C USB Transfer Supports FTP/HTTP download
-Static H: 2.5mm±0.5ppm (RMS) V: 5mm±0.5ppm (RMS)
-Real-time Kinematic H: 8mm±1ppm (RMS) V: 15mm±1ppm (RMS)
-Battery Capacity 6800 mAh.
-Unit ringan dengan berat 740gram
-Penyimpanan 8gb SSD

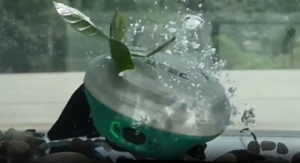

-Waterproof & Dustproof IP68
Note:
*Harga Dapat Berubah Sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
*Barang selalu kami cek terlebih dahulu sebelum di kirim.
*Barang di toko kami di jamin original dan baru.
Rp95.000.000 Rp159.000.000
GPS GNSS Geodetik RTK Satelit SV1 STEC Satelit Technology
– 1,408 channels
-Support GPS, GLONASS, BDS, BEIDOU, GALILEO, SBAS, QZSS, L-band
-Frekuensi 410-470 Mhz
-2 Sensors mega CMOS imaging sensors
-Data Tranfer Type-C USB Transfer Supports FTP/HTTP download
-Static H: 2.5mm±0.5ppm (RMS) V: 5mm±0.5ppm (RMS)
-Real-time Kinematic H: 8mm±1ppm (RMS) V: 15mm±1ppm (RMS)
-Battery Capacity 6800 mAh.
-Unit ringan dengan berat 740gram
-Penyimpanan 8gb SSD
-Waterproof & Dustproof IP68
GPS RTK SATELIT SV1 include
Free Pelatihan dan Demo WA : 081 323 67 3998 (Bpk Wova)

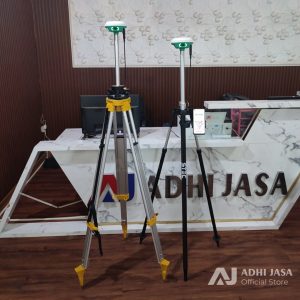

PAKET PEMBELIAN GPS GNSS Geodetik RTK Satelit SV1 STEC Satelit Technology :
● 1x Base
● 1x Rover

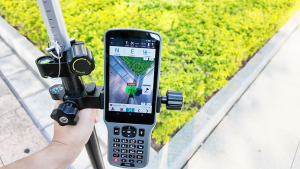

● 1x Controller Android
● 1x Tripod Statif
● 1x Stik/Pole/Jalon
● 1x Tribrach
Spesifikasi GPS RTK STEC SV1 :
| SATELLITE PERFORMANCE | |
| Channels | 1,408 |
| GPS | L1C/A, L2C, L2P(Y), L5 |
| GLONASS | L1, L2 |
| BEIDOU | B1l, B2l, B3l, B1C, B2a, B2b |
| GALILEO | E1, E5a, E5b, E6 |
| QZSS | L1, L2, L5, L6 |
| SBAS | L1, L5 |
| L-Band | B2b PPP |
| Positioning Rate | 1-20Hz |
| ACCURACY | |
| Code Differential | H: 0.40m (RMS) |
| V: 0.80m (RMS) | |
| Static | H: 2.5mm±0.5ppm (RMS) |
| V: 5mm±0.5ppm (RMS) | |
| Real-time Kinematic | H: 8mm±1ppm (RMS) |
| V: 15mm±1ppm (RMS) | |
| Network PPK | H: 3mm±1ppm (RMS) |
| V: 5mm±1ppm (RMS) | |
| IMU MEASUREMENT | |
| Tilt Angle | Maximum 60° |
| Accuracy | 2cm |
| DATA STORAGE | |
| Type & Storage | SSD 8GB |
| External USB Pen drive | |
| Data Tranfer | Type-C USB Transfer |
| Supports FTP/HTTP download | |
| Differential Format | RTCM 2.1, RTCM 2.3, RTCM 3.0, |
| RTCM 3.1, RTCM 3.2, NMEA 0183, | |
| PJK plane coord., binary code, | |
| Trimble GSOF | |
| GPS Output Format | VRS, FKP, MAC |
| Network Model | Ntrip fully supportable |
| CAMERA | |
| Optical Format | 1/5 inch |
| Pixel Size | 1.75*1.75μm |
| Active Pixel Array | 1616*1232 |
| Sensor | 2 mega CMOS imaging sensors |
| COMMUNICATION | |
| I/O | Type-C (OTG+Fast Charge+Ethernet) |
| Antenna Port | All-in-one port for radio/GPRS antenna |

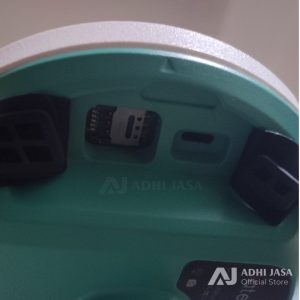

| Network Modem | Nano-SIM card |
| LTE FDD, LTE TDD, UMTS, GSM | |
| UHF Radio | 2W Tx/Rx |
| 410-470MHz | |
| Protocol | S-LINK, TrimTalk, Hi-target, SOUTH, |
| CHC | |
| WiFi | 802.11b/g/n |
| Hotspot/Data Link | |
| Bluetooth | Bluetooth 2.1 + EDR and 4.0 |
| NFC | Available |
| INTERFACES | |
| Button | 1 |
| LED Indicator | Data Link, Satellite, Bluetooth, Power |
| POWER SUPPLY | |
| Battery | Internal Li-on Battery |
| 3.6V, 6,800mAh | |
| Operating Time | Static mode 15h |
| Rover mode 20h | |
| PHYSICAL | |
| Dimension | 74mm(H), 128mm (W) |
| Weight | 740g |
| Operating Temp. | -30°C to 65°C |
| Storage Temp. | -40°C to 80°C |
| Proof | IP68 water and dust proof |
| 2m drop on hard surface | |
| 40G 10ms sawtooth wave |
| Berat | 35 kg |
|---|---|
| Brands | STEC |
| Warna | Hijau |
