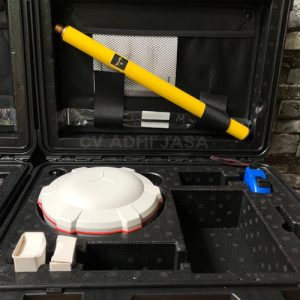

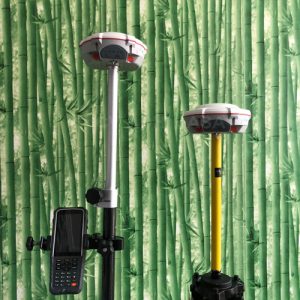

GPS RTK Comnav T300 GNSS Sino T300
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 2
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 3
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 4
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 5
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 6
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 7
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 8
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 9
GPS RTK Comnav T300 GNSS Sino T300 - Gambar 10
GPS RTK Comnav T300 GNSS Sino T300
,

GPS RTK Comnav T300 GNSS Sino T300

Comnav

GPS RTK Comnav T300 GNSS Sino T300
Fitur GPS RTK Comnav T300
– 965 Channels
– GPS : L1/A, L2C, L2P, L5
– BeiDou : B11, B21, B31, B1C, B2a, B2B
– GLONNAS : L1, L2, L3
– Galileo : E1, E5a, E5b, E6, AltBOC
– Navic : L5
– SBAS : WAAS, EGNOS, MSAS, GAGAN, SDCM, BDSBAS
– Mode : Static, Fast Static, RTK
– Port : 7 Pin Lemo
– 4G Modem
– Frequency : 410-470 mhZ2
– Range : 1-5 km
– Bluotooth : V 4.0 protocol, compatible with Windows OS and Android OS
– Software : Survey Master, Carlson SurvCE, Micro Survey FieldGenius

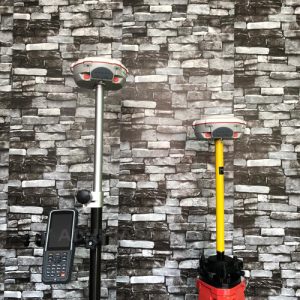

Paket Pembelian :
1 x Base
1 x Rover
1 x Controller Android
1 x Mini Pole
1 x Tribrach
1 x Pole stik
1 x Tripod

Kami juga menjual alat-alat survey lainnya, seperti Total Station, Digital
Theodolite, Waterpass / Autolevel, GPS, Aksesoris, dan Spare part peralatan
survey.
Untuk keterangan, dan informasi produk lainnya, hubungi :
CV. ADHI JASA

Note:
*Harga Dapat Berubah Sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
*Barang selalu kami cek terlebih dahulu sebelum di kirim.
*Barang di toko kami di jamin original dan baru.

Rp95.000.000 Rp110.000.000

Gunakan fitur ini untuk chatting dengan admin kami.

Wova S. Nirwana Bantuan Online Need Help? Chat us via Whatsapp WA : 6281323673998 Chat
Rendy Adiwijaya Sales Agen Online Need Help? Chat us via Whatsapp WA : 6282128000498 Chat

GPS RTK Comnav T300 GNSS Sino T300
Fitur GPS RTK Comnav T300
– 965 Channels
– GPS : L1/A, L2C, L2P, L5
– BeiDou : B11, B21, B31, B1C, B2a, B2B
– GLONNAS : L1, L2, L3
– Galileo : E1, E5a, E5b, E6, AltBOC
– Navic : L5
– SBAS : WAAS, EGNOS, MSAS, GAGAN, SDCM, BDSBAS
– Mode : Static, Fast Static, RTK
– Port : 7 Pin Lemo
– 4G Modem
– Frequency : 410-470 mhZ2
– Range : 1-5 km
– Bluotooth : V 4.0 protocol, compatible with Windows OS and Android OS
– Software : Survey Master, Carlson SurvCE, Micro Survey FieldGenius

Paket Pembelian :
1 x Base
1 x Rover
1 x Controller Android
1 x Mini Pole
1 x Tribrach
1 x Pole stik
1 x Tripod

Spesifikasi GPS RTK Comnav T300 GNSS Sino T300 :


Signal Tracking
572 channels for simultaneously tracking satellite signals
GPS
BeiDou
BeiDou Global Signal
GLONASS
Galileo
QZSS
SBAS		 L1, L2, L2C, L5
B1, B2, B3
B1C, B2a
L1, L2
E1, E5a, E5b
Reserved
WAAS, EGNOS, MSAS, GAGAN
Performance Specifications
Cold start
Warm start
Hot start
Initialization time
Signal re-acquisition
Initialization reliability		 <50 s
<30 s
<15 s
<10 s
<1.5 s
>99.9%
Positioning Specifications
Static and
Fast Static
Long Observations
Static
Real Time
Kinematic
DGPS
SBAS
Standalone		 2.5 mm + 0.5 ppm Horizontal
5 mm + 0.5 ppm Vertical
3 mm + 0.1 ppm Horizontal
3.5 mm + 0.4 ppm Vertical
8 mm + 1 ppm Horizontal
15 mm + 1 ppm Vertical
<0.4 m RMS
1 m 3D RMS
1.5m 3D RMS
Communications
1 Serial port (7 pin Lemo) Baud rates up to 921,600 bps
UHF modem1
: Tx/Rx with full frequency range from 410-470 MHz2
Transmit power: 0.5-2 W adjustable
Range: 1-5 km3
4G modem
4G Bands: 800/900/1800/2100/2600 MHz
3G Bands: 900/2100 MHz
2G Bands: 900/1800 MHz
Support GSM, Point to Point/Points and NTRIP
Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
5 LEDs (indicating Power, Satellite Tracking, GPRS Status and Differential Data)
Bluetooth® : V 4.0 protocol, compatible with Windows OS and Android OS
Data Format
Correction data I/O
Position data output		 RTCM SC104 Version 2.x, 3.x formats,
CMR(GPS only),CMR+(GPS only)
ASCII: NMEA-0183 GSV, RMC, HDT, VHD,
GGA, GSA, ZDA, VTG, GST; PTNL, PJK;
PTNL, AVR; PTNL, GGK
ComNav Binary update to 20 Hz
Physical
Size(L × W × H)
Weight		 15.8 cm × 7.5 cm
0.95 kg with two batteries
Environmental
Operating temperature
Storage temperature
Humidity
Waterproof and dustproof
Shock		 -40 °C to + 65 °C
-40 °C to + 85 °C
100% non-condensing
IP67,protected from temporary immersion
to depth of 1 m
Designed to Survive a 2 m drop onto concrete
Electrical and Memory
Input voltage
Power consumption
Li-ion battery capacity
Memory		 5-27 VDC
3.1 W4
2 × 2000 mAh, up to 9 hours typically
8 GB
Software
Survey Master Android-based data collection software
Carlson SurvCE field data collection software (optional)
MicroSurvey FieldGenius field data collection software (optional)
1.UHF Modem and 4G Modem is default configuration and it can be removed
according to your specific needs.
2.Integrated UHF ranges from 410 to 470 MHz with 12.5 KHz channel spacing.
3.Working distance of internal UHF varies in different environments, the
maximum distance is 5 Km in ideal situation.
4.Power consumption will increase if transmitting corrections via internal UHF.
5.8GB is the default internal memory and optional 16GB, 32GB is available
to order. Please clarify when placing the order
Specifications subject to change without notice.

Kami juga menjual alat-alat survey lainnya, seperti Total Station, Digital
Theodolite, Waterpass / Autolevel, GPS, Aksesoris, dan Spare part peralatan
survey.
Untuk keterangan, dan informasi produk lainnya, hubungi :
CV. ADHI JASA
